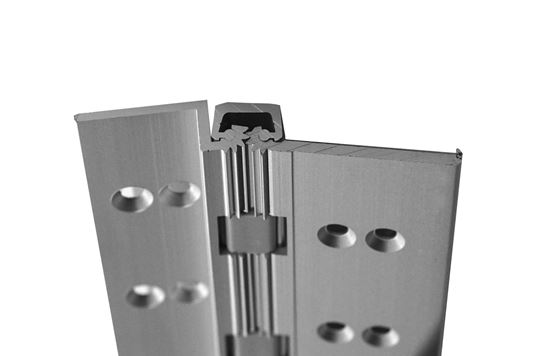

A135HD Aluminum Continuous Gear Hinges Full Mortise

A135HD Aluminum Continuous Gear Hinges Full Mortise

Standard / Heavy Duty, 1/8" Inset
$0.00
  • BHMA Grade 1
  • Full Concealed, Heavy Duty
  • 1/8" Door Inset
  • Safety hinge application when used without a frame stop
  • Door Lip Protector
  • Used Primarily in schools, nursing homes and day care faciities to avoid fingers and/or other objects being closed in the door

  • Fasteners:
    12-24 X 3/4" undercut self drilling, thread forming tek machine screws

  • Standard Lengths:
    79", 83", 85", 95" and 120" + Custom Sizes Available
Clear Anodized
Dark Bronze Anodized
Black Anodized
  • "EA-12" - Easy Access (12) 22 AWG Super Flex Ribbon Through Wire
  • "EA12-EZ" - Easy Access (12) 22 AWG Super Flex Ribbon Through Wire with EZ Connectors
  • "R" - Removable Electrical Access Prep
  • "PT" - Electrical Power Transfer Prep (Specify Electrical Power Transfer Model, Location & Handing
  • "EM" - Concealed Electrical Magnetic Monitoring Switch
  • "ES" - Exposed Electrical Monitoring Switch
  • "FR" - Fire Studs
  • "HT" - Hopsital Tip
  • "WEDGE-FM" - Adjustable Safety Wedge for Full Mortise Models
  • "AHT-FM" - Advanced Hospital Tip for Full Mortise Ligature-Resistant Applications (Specify Handing)
  • "LR-BEAR" - Ligature-Resistant Bearings
  • "DD" - Dutch Door Prep
  • "SEC" - Fasteners
  • "CUT" - Cut to Custom Length
  • "TR" - Tamper-Resistant (Hospital Tip, Every Other Bearing has a Set Screw) & Security Fasteners (Specify Door & Frame Material)
  • "TR-AHT-FM" - Tamper-Resistant (Advanced Hospital Tip, Every Other Bearing has a Set Screw) & Security Fasteners (Specify Door & Frame Material) for Full Mortise
  • "SC" - School Cap
  • "SPLICE" - Spliced Hinge
  • "SL" - Sheared Leaf
  • "THICK" - Special Door Thickness
  • "CUSTOM HOLE" - Custom hole locations
  • "CUSTOM FINISH"
