A500 Stainless Steel Pin & Barrel Continuous Hinges Full Mortise

Picture of A500 Stainless Steel Pin & Barrel Continuous Hinges Full Mortise

A500 Stainless Steel Pin & Barrel Continuous Hinges Full Mortise

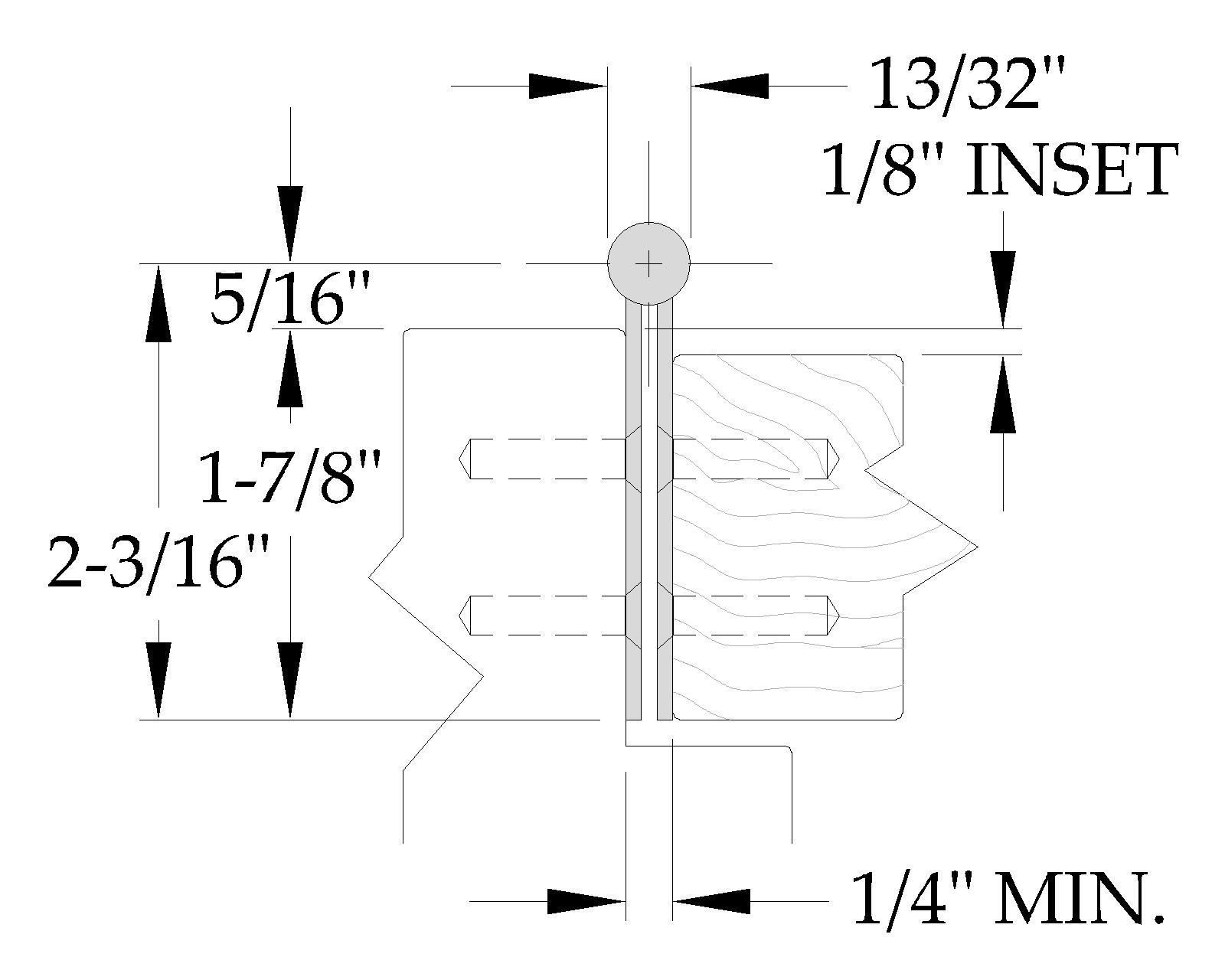

1/8" Inset

$0.00

Features:
- Full Concealed, heavy duty
- 1/8" door inset
- 48" door width maximum
- 600 lbs. door weight maximum
- Average weight per unit = 16 lbs
- Fasteners: 10-24 x 7/8" undercut, self-drilling, thread-forming tek machines screws, stainless steel and #10 x 1-1/4" undercut, wood screws, stainless steel
Lengths:
- 78-3/4"
- 83-1/8"
- 85", 95"
- 118-3/4"
Fire Rating: Tested and certified by UL® (U.S.A. and Canada) on 4'0" x 10'0" fire rated doors, based on the following
- 20 minutes - wood doors
- 90 minutes hollow metal and composite wood fire doors
- 3 hours - hollow metal doors

Picture for finish US32D - 630 - Satin Stainless Steel

US32D - 630 - Satin Stainless Steel

"TW4" (4) 30 AWG Wires for Concealed Electrification
"TW8" (8) 30 AWG Wires for Concealed Electrification
"TW12" (12) 30 AWG Wires for Concealed Electrification
"EZ4" (4) 30 AWG Wires with Molex® Microfit 3.0 Connectors for Concealed Electrification
"EZ8" (8) 30 AWG Wires with Molex® Microfit 3.0 Connectors for Concealed Electrification
"EZ12" (12) 30 AWG Wires with Molex® Microfit 3.0 Connectors for Concealed Electrification
"M" Moveable Electrical Access Prep
"PT" Electrical Power Transfer Prep (Specify Electrical Power Transfer Model, Location & Handing
"AMS" Adjustable Monitoring Switch
"HT" Hospital Tip
"DD" Dutch Door Prep
"STUD" Security Studs
"SEC" Fasteners
"CUT" Cut to Custom Length
"SL" - Sheared Leaf
"SPLICE" Spliced Hinge
"RB" Raised Barrel (A500, A505 & A515 Models Only)
"ADB" Cut for Automatic Door Bottom
"ADB-1840" Cut for Automatic Door Bottom with Removable Section (Specify ADB Make & Model)
"CUSTOM FINISH"
"CUSTOM HOLE" Custom hole locations

Cut Sheets

Templates

Tech Memos

Order Forms

Substitution Request Forms

Substitution Request

Cross Reference Charts

Stainless Steel Pin and Barrel Continuous Hinges Cross Reference Chart

Product tags

Hager (42)
,
Pemko (26)
,
McKinney (26)
,
Stanley (19)
,
Ives (33)
,
Markar (14)
