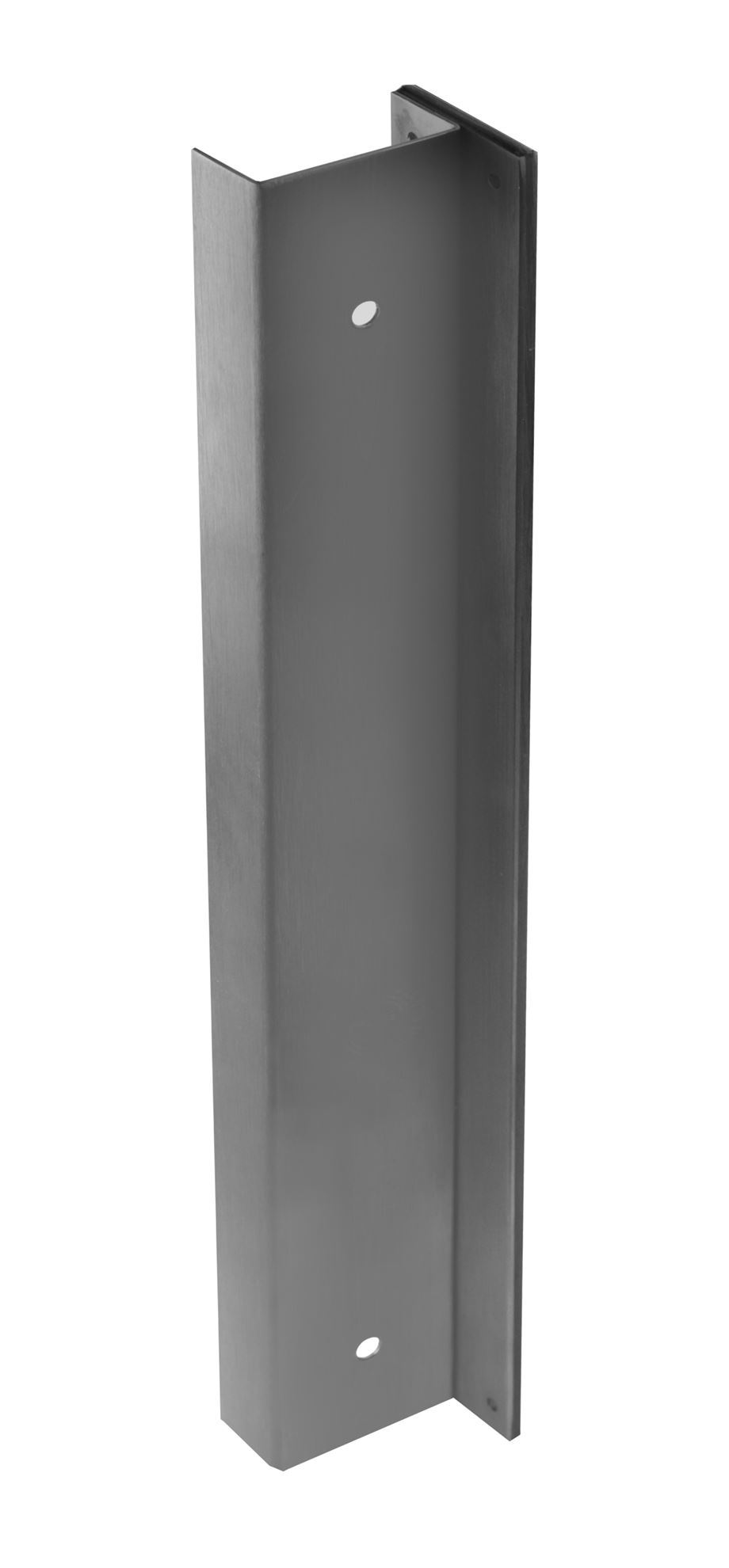

A548B Edge Guard With Astragal

Picture of A548B Edge Guard With Astragal
Picture of A548B Edge Guard With Astragal Picture of A548B Edge Guard With Astragal

A548B Edge Guard With Astragal

Bevel Edge Non-Mortised with Astragal
$0.00
  • Standard Features
    • Integral astragal provides additional security by protecting the latch from intruders or vandalism
    • .050" material thickness - 304 stainless steel
    • Fasteners provided - #6 x 5/8" Phillips flat head, undercut sheet metal screws
    • Specify any length up to 120"
    • For use on 1-3/4" door
    • Specify handing and either active or inactive door when ordering
    • Average weight per unit = 5.5 lbs

  • Fire Rating
    • ABH edge guards come standard UL fire rated for use on:
    • Wood or plastic-covered wood composite fire doors rated up to and including 1-1/2 hours
    • Hollow metal, steel-covered, composite type fire doors rated up to and including 3 hours

  • Options
    • Custom Leg sizes available
    • Custom door thikcnesses available
Picture for finish US32D - 630 - Satin Stainless Steel
US32D - 630 - Satin Stainless Steel
Picture for finish US3 - 605 - Bright Brass
US3 - 605 - Bright Brass
Picture for finish US4 - 606 - Satin Brass
US4 - 606 - Satin Brass
Picture for finish US10 - 612 - Satin Bronze
US10 - 612 - Satin Bronze
Picture for finish US10B - 613 - Oil Rubbed Bronze
US10B - 613 - Oil Rubbed Bronze
Picture for finish US32 - 629 - Bright Stainless Steel
US32 - 629 - Bright Stainless Steel
  • "SEC" Fasteners
  • "CUT OUTS" ABH offers numerous cut-outs for door hardware
  • "AS" Adjustable Studs
  • "LL" A548 Astragal Lead-Lined
